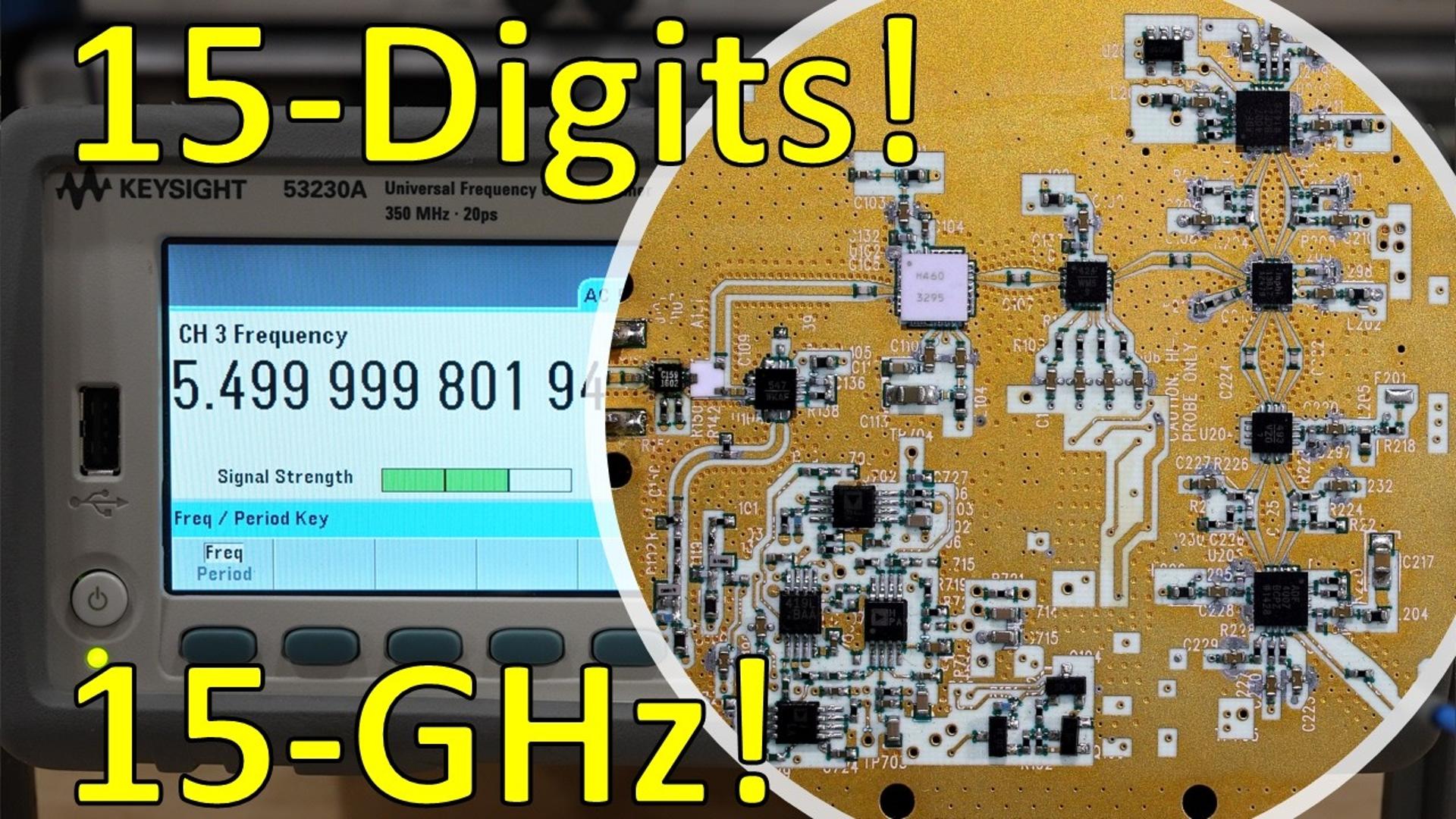

Fixing with the Flu - Keysight 53230A 15-Digit, 20ps Frequency Counter Repair, Teardown & Upgrade

The video documents a hands‑on repair of a Keysight 53230A 15‑digit, 20 ps frequency counter that the host bought on eBay for nearly $2,000 despite being non‑functional. After powering up, the instrument’s built‑in self‑test flags Vmin and Vmax as overload on both primary channels, while the third, microwave‑down‑converter channel reports normal readings, indicating that the DSP and back‑end processing are still operational. The presenter walks through the internal architecture, noting that channels A and B share identical analog front‑end conditioning—input protection, impedance selection, AC/DC coupling, and comparator‑based slicers—whereas channel C is isolated via a single SMA feed. Because both primary channels exhibit the same overload error, the likely culprit is a common component or shared circuitry rather than isolated damage. The lack of schematics forces a reverse‑engineering approach, focusing on the comparator chips, latch networks, and threshold DACs that generate the Vmin/Vmax measurements. Key observations include the instrument’s $2,000 resale value, the absence of a block diagram in the manual, and the discovery that the comparator package contains dual latches with independent thresholds but shared inputs. The host highlights a specific Analog Devices comparator (5 GHz bandwidth) and explains how its latch‑enable and reference‑voltage controls are used to derive minimum and maximum voltage readings without an ADC. The repair effort underscores the growing market for refurbishing high‑end test gear as used‑instrument prices soar. Successfully diagnosing and fixing the shared front‑end fault could restore a near‑top‑tier counter to serviceable condition, offering labs and hobbyists a cost‑effective alternative to purchasing new equipment.
